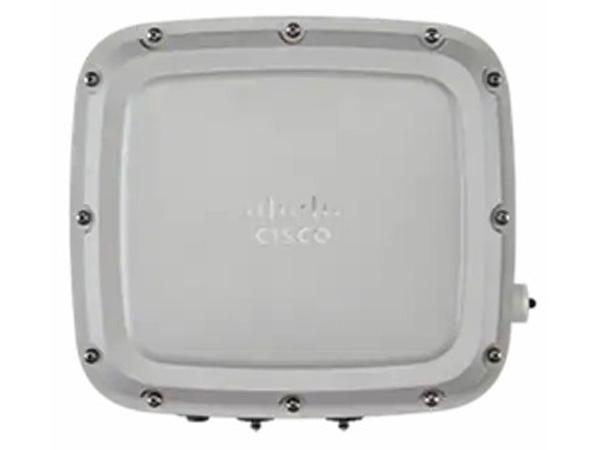

Cisco Catalyst 9124AX Series – Outdoor Wi-Fi 6 Access Point (C9124AXE-B-EDU)

Description

The Cisco Catalyst 9124AX Series Outdoor Access Point brings next-generation Wi-Fi 6 (802.11ax) to rugged, open-air environments, delivering fast, reliable, and secure wireless connectivity for enterprise-grade networks. Designed for maximum coverage and durability, this outdoor AP is ideal for campuses, outdoor classrooms, stadiums, and industrial deployments requiring seamless, high-performance wireless access.

Key Features:
• Wi-Fi 6 (802.11ax) Support: Superior wireless efficiency, higher client capacity, and increased throughput
• 4×4 and 4×4 MU-MIMO: High-density spatial streams improve network performance in busy outdoor areas
• Outdoor-Rated Design: Ruggedized enclosure for harsh environmental conditions – perfect for year-round deployment
• Full Spectrum Band Support: Operates on both 2.4 GHz and 5 GHz with advanced antenna architecture
• Advanced Security & Policy Enforcement: Integrated support for Cisco DNA Center, encrypted traffic handling, and secure policy delivery

Technical Specifications:
• Model: C9124AXE-B-EDU
• Wireless Standard: 802.11a/b/g/n/ac/ax (Wi-Fi 6)
• Antenna Type: External (Antenna sold separately)
• MIMO Configuration: 4×4 MU-MIMO (2.4 GHz) + 4×4 MU-MIMO (5 GHz)
• Max Data Rate: Over 5 Gbps aggregate throughput
• Environment: Outdoor rated
• Enclosure: IP67 sealed for dust, moisture, and weather protection
• Security: WPA3, Cisco Identity Services Engine (ISE), 802.1X
• Management: Cisco DNA Center, embedded wireless controller
• Dimensions (H x W x D): 9.21 x 9.21 x 3.30 in (234 x 234 x 84 mm)
• Weight: 5.50 lbs
• Power Source: Power over Ethernet (PoE) – 802.3at
• Mounting: Pole, wall, or ceiling mount options (hardware not included)

Warranty & Support:
• Warranty: 1-year limited warranty
• Support Options: Cisco Smart Net or DNA Advantage (sold separately)

The Cisco Catalyst 9124AXE outdoor access point provides industry-leading Wi-Fi 6 performance in the most challenging environments. With rugged durability and enterprise-class manageability, it’s the ideal solution for any organization extending connectivity outdoors.
