Description

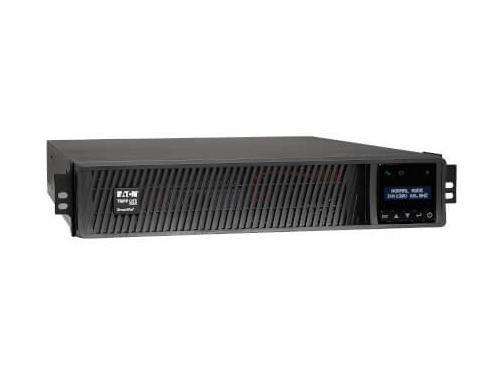

The Eaton SMART3000RMXL2U (formerly Tripp Lite SmartPro Series) is a high-performance 2U rack/tower convertible line-interactive UPS system designed to protect mission-critical equipment such as servers, storage arrays, and VoIP hardware. Offering sine wave output and automatic voltage regulation (AVR), it delivers clean power and extended runtime capability with optional external battery packs. It includes advanced management features like USB/DB9 connectivity and a front-panel LCD interface for at-a-glance status updates.
Key Features:
• 3000VA / 3000W Capacity: Supports large servers and network environments.
• Pure Sine Wave Output: Ensures compatibility with sensitive equipment and active PFC power supplies.
• Extended Runtime Capability: Add external battery packs for scalable backup time.

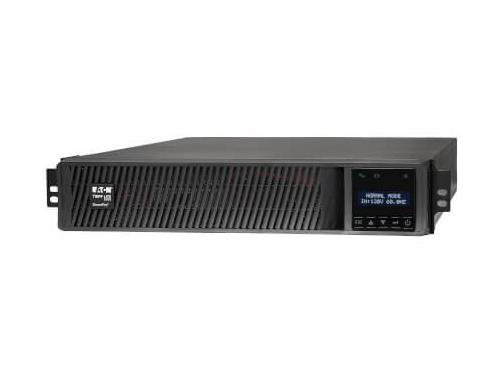

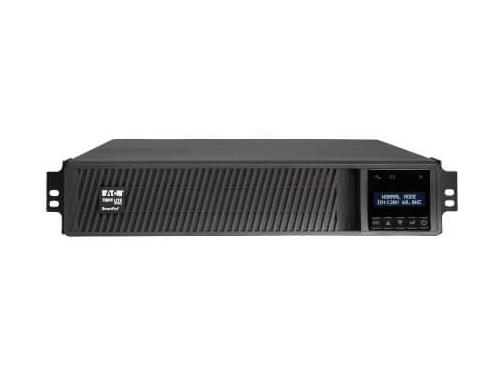

• LCD Status Display: Provides real-time updates on UPS status, load, battery condition, and runtime.
• Flexible Form Factor: Rackmount (2U) or tower installation with adjustable support brackets.
• USB/DB9 Ports: For local monitoring and safe system shutdown integration.
Technical Specifications:
• UPS Type: Line-Interactive
• Capacity: 3000VA / 3000W
• Input Voltage Range: 83V to 145V
• Output Voltage: 120V nominal
• Output Frequency: 60 Hz
• Waveform Type: Pure Sine Wave
• Voltage Regulation: ±8% (line mode)
• Transfer Time: 4 ms typical
• Surge Protection: 570 Joules
• Outlets: 8 x 5-15/20R

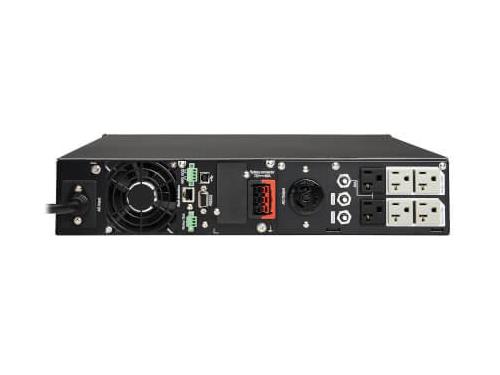

• Communications Ports: USB, DB9
• Hot-Swap Battery: Yes
• Battery Type: VRLA sealed lead acid
• Battery Recharge Time: <4 hours (90%)
• Expandable Runtime: Yes, supports external battery packs (BP72V15-2U and others)
• Rackmount Size: 2U
• Dimensions (H x W x D): 3.5 × 17.5 × 19 in
• Weight: 66.2 lbs
Warranty & Support:
• Warranty: 2-Year Limited Warranty
• Support: Eaton technical and product support available
The Eaton SMART3000RMXL2U offers enterprise-grade power protection and scalability, making it ideal for data centers, branch offices, and critical IT environments requiring reliable uptime and versatile management tools.
